?？送薘AC鋁制千斤頂參數

最大行程：50-200mm

?？送薍EKVEK鋁制油缸特點：

1.  鋁合金設計，質輕易攜帶。

2.  上螺帽保護主軸超揚昇。

5.  各種號均含SQB- 3/UF快速接頭及防塵蓋。

7.  主軸及缸壁內外陽極處理防損耐磨且延長使用壽命。

8.  多層油封設計，預防金屬材質間互相磨擦，防止側向荷載受損。

9.  特殊軟質環設計，防止主軸偏心荷載;避免磨耗刮傷油缸。


Single-Acting, Aluminum Cylinders


※Lightweight, aluminum design for maximum portability.


※7075-TR Aluminum alloy components for maximum strength and minimum weight.

※Steel baseplate and saddle for protection against piston rod damage.


※Anodizing treatment plunger, surfaces and inner of barrel resists damage and extends cylinder life.
※Maximum sized springs speed piston return and increase spring life.


※Special soft ring reduces wear caused by off-center loads.


※Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-load.
※Stop ring for piston blow-out protection.


※AIl cylinders are equipped with SQB-3/8UF female coupler & dust cap.

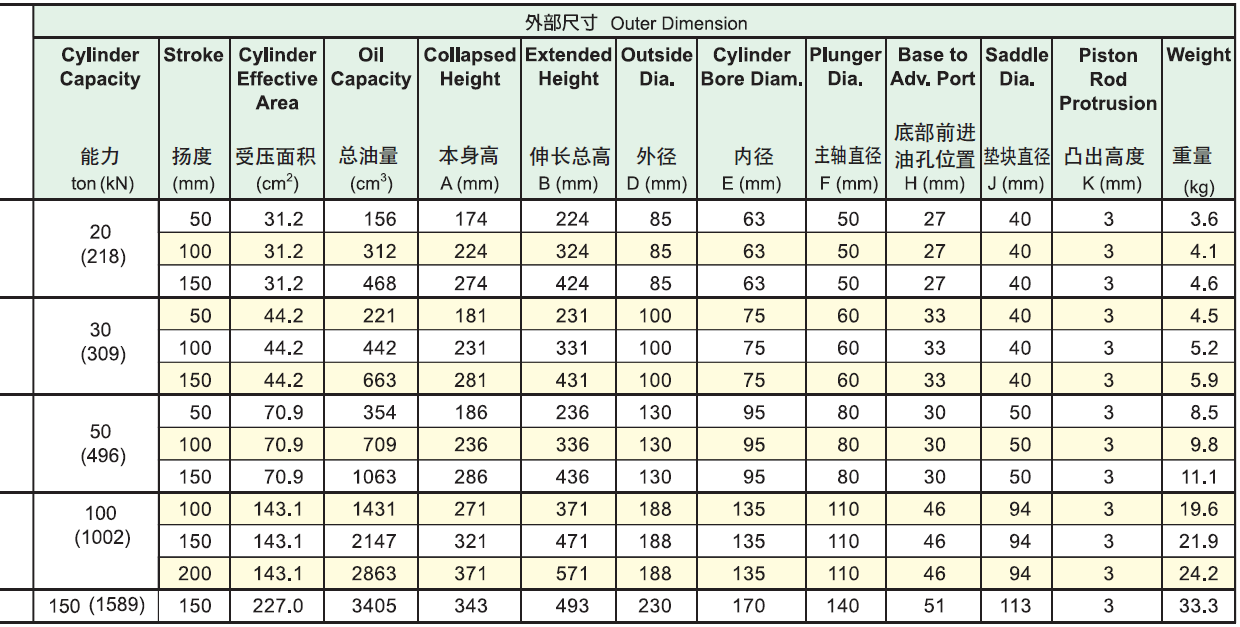

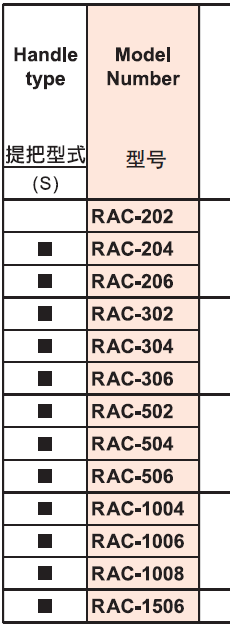

英國HEKVEK?？送薘AC鋁制油缸選型表：
